Manufacturer: SOUNDLIGHTThis pcb performs electrical isolation and line level amplification of DMX512 signals. The line driver features microprocessor-controlled DMX512 analysis; signalling is with red/green LED displays. Fast and easy connection with patented cage clamp connectors.1 DMX UNIVERSECompatibility: DMX512/1990, DMX512A, DIN56930-2Speisung/Power Supply: 230V AC, ca. 2WAbmessungen/Dimensions: 136mm x 28mm

The demultiplexer 3012C-EP RDM decodes a DMX512 input signal to drive 12 analog outputs, supplying a 0…+10V control voltage to drive dimmer packs, smoke machines or similar equipment. The decorder is also able to drive active loads like 1…10V electronic ballasts. Additionally, the outputs can be set to inverted mode to deliver a 0…-10V control signal. Power supply is 230VAC.Delivery comprises a separate start address board 3000P*. The decoder can also be configured to master mode (CH1…12 inputs, CH13 master).*= The start adress board 3000P is comprised with delivery. Other start address boards cannot be used with the 3012C-EP.Specifications DMX Demultiplexer 3012C-EP RDM12 control outputs DMX512/1990, DMX512-A, DIN56930-2, ANSI E1-20 DMX RDM 12 outputs 0…+10V, or 0…-10V, max. 1mA Power supply: 230V AC, approx. 2,2W Dimensions: 140mm x 65mm

A small demux, but a big performer: the 3012B-EP features full compatibility not only with standard USITT DMX512/1990, but also DMX512-A and even DMX RDM (ANSI E1-20). The demux has 12 outputs, accessible via a 16 pin ribbon connector. The demux drives all kind of 0-10V equipment, including dimmer packs, smoke machines and more. You can assign an additional master channel to control all outputs simultaneously. Neutrik XLR connectors are standard, power supply is 15…24V DC (approx. 60mA).Delivery is complete with start adress board 3000P. Use DMX RDM to remotely set the start adress, the DMX personality, and the output response. Read power supply sensor, operating hours and system start-ups.Dimensions are 70mm x 70mm. Specifications DMX Demultiplexer 3012B-EP12-channel (13-ch w/ master)DMX512/1990, DMX512A, DMX RDM12 outputs 0…+10V, max. 4mAPower supply: 15…24V DC, approx. 60mADimensions: 70mm x 70mm

Manufacturer: SOUNDLIGHT2 Relays, switching individually (2 DMX data slots). Switching hysteresis is selectable, either 50%/51%, 3%/97%, 25%/75%, or 0%/1% (idally suited to switch flourescent lights). At loss off DMX control signal, all relays can be set to OFF, or to ON, or the last valid setting can be retained (DMX HOLD). Printed circuit board approx. 70 x 70 mm, without optional DMX start address switch board. Power supply: 12V DC, ca. 150 mA. 24V model available on request.The DMX relay 3202R-EP is DMX RDM comaptible (from version Mk7 onward). The relay can be operated from DMX512/1990, DIN56930-2, DMX512-A or ANSI E1-20 DMX RDM. For more info, pls refer to our website www.rdm.soundlight.de2-channelDMX512/1990, DMX512-A, ANSI E-20 DMX RDM2 switching outputsModel 3202R-EP6: Relay N.O./N.C., 230V 6A resistive LastModel 3202R-EP16: Relay N.O., 230V 16A resistive LastPower supply: 12V DC, approx. 150mADimensions: 70mm x 70mmFAST MODE: Relays operate very fast to drive effects. The SLOW Mode (high noise immunity, standard mode) is set as default mode.EXCLUSIVE MODE: Relaysare switching exklusively, that means: either only relay 1 or only relay 2MONOSTABLE MODE: a user-definable on-time can be set for each relayQUIET IDENTIFY: RDM Identify only on LED indicators. Default: "LOUD MODE" (Relays switching at RDM Identify)SUB-DEVICES: When operating in Sub-Device-Mode, a individual start address (001...512) can be assigned to each relay

 This small 2-channel demux is some sort of genius: the two 0- 10V outputs can be independently operated and can even drive 1-10V equipment, e.g. electronic ballasts.This makes this demultiplexer a truly universal tool. The 3002B-H can drive dimmer packs, smoke machines, electronic ballasts, or motor v/f converters - to name just a few. Additionally, the 3002B-H features two separate relay outputs to switch DC voltage, AC voltage or audio signals. You can assign the relay to its own DMX control channel, or to switch simultaneously with the respective analog output. The relay will then automatically be fired at 1% intensity to allow synchronous operation with elecronic ballasts oder LED converters. Since analog controlled electronic ballasts cannot be driven to "off" via the control input, this allows to syncronously switch power to achive a true "full off" control.    DMX DEMULTIPLEXER    2-channel    DMX512/1990, DIN56930-2, DMX512-A, ANSI E1-20 DMX RDM    2 outputs 0...+10V, max. 2mA    3 output characteristics, 2 self-definable USER curves    2 Relay outputs max. 230V, max. 6A (resistive load)    1 DMX output using its own start address    All remote settings easy and comfortable by DMX RDM    Power supply: 24V DC (20...26V), approx. 60mA    Dimensions: DIN Rail, width 4U (68mm)

The SOUNDLIGHT 2-output DMX SPLITTER 3402A comes as ready-to-use printed circuit board equipped with Neutrik XLR connectors conforming to all present DMX standards. Power supply is 230VAC. The DMX input is optically isolated from the outputs.Specifications 3204A-EP1 DMX UNIVERSE, 2 outputsCompatibility: DMX512/1990, DMX512-A, DIN56930-2XLR-connectors (5pin) onboard (input and outputs)Power supply: 230V AC, approx. 3WDimensions: 100mm x 90mm

The 3402B-H is a DMX splitter intended for DIN rail mount on standard 35mm rails. Simply click onto rail to install, or pull yellow release lever to unlock. The DMX splitter consists of a DMX IN data input, and two DMX OUT data outputs, which are electrically isolated in respect to the data input. Thus a defective fixture connected to one output will never affect DMX IN or DMX THRU data. This dramatically improves overall system stability and system reliability.The 3402B-H is fully DMX RDM compatible, operates in bidirectional mode and supports E1-20 and E1-37 DMX RDM standards. Multiple splitters can be used in parallel to provide more output branches. Sophisticated microprocessor control makes the 3402B-H more reliable and faster than competing products.Specifications DMX Splitter / Booster 3402B-H1 DMX UNIVERSE, 2 outputsCompatibility: DMX512/1990, ANSI E1-11 DMX512A,DMX to DIN56930-2, ANSI E1-20 DMX RDMCage clamp connectors (Input, and 2 opto-isolated outputs)Power Supply: 24V DC approx 2.5WDimensions: DIN rail, width 2UTrue signal analysisWhile the DMX splitter does not modify DMX signal contents or timing parameters, it monitors the signal and reports signal properties when allowable limites are reached. DMX RDM data traffic is displayed on stauts LEDs.Transparent deviceThe 3402B-H is fully RDM compatible, but it does not appear as RDM device itself. Thus the 3402B-H does not show any RDM properties. This does neither affect the number of connected RDM devices nor RDM functionality. This behaviour is known as „transparent“: effective, inconspicious. Since the 3402B-H only cares about the standardized structure of RDM commands, and does not care about contents, on of it’s big advantages is to function absoluteley independent of signal contents. Thus future changes or amendments to RDM commands will never affect the 3402B-H: this splitter will function always.

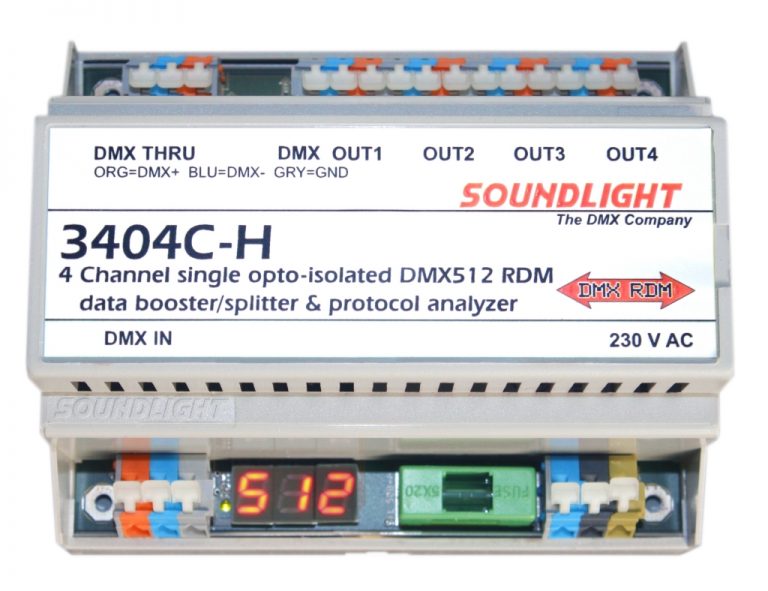

The 3404C-H is a DMX splitter intended for DIN rail mount on standard 35mm rails. Simply click onto rail to install, or pull yellow release lever to unlock. The DMX splitter consists of a DMX IN data input, one direct DMX THRU output and four electrically isolated DMX OUT data outputs. Since all outputs are individually electrically isolated, a defective fixture connected to one output will neither affect other outputs nor DMX IN or DMX THRU data. This dramatically improves overall system stability and system reliability. The 3404C-H is fully DMX RDM compatible, operates in bidirectional mode and supports E1-20 and E1-37 DMX RDM standards. Multiple splitters can be used in parallel to provide more output branches. Using individual branch discovery, only devices connected to one output are discovered simultaneously. This reduces the number of logical devices per discovery run, lowering signal noise and speeding up the total discovery process.Specifications DMX Splitter 3404C-H1 DMX UNIVERSE, 4+1 outputsCompatibility: DMX512/1990, ANSI E1-11 DMX512A,DMX to DIN56930-2, ANSI E1-20 DMX RDMCage clamp connectors (Input, DMX THRU and 4 opto-isolated outputs)Wide range Power Supply: 85…230V AC, approx. 4WDimensions: DIN rail, width 6,5UTrue signal analysis While the DMX splitter does not modify DMX signal contents or timing parameters, it monitors the signal and reports signal properties when allowable limites are reached. The number of data slots contained in the actual data telegram is displayed, and DMX RDM data traffic is identified and displayed as „rdn“.Transparent deviceThe 3404C-H is fully RDM compatible, but it does not appear as RDM device itself. Thus the 3404C-H does not show any RDM properties. This does neither affect the number of connected RDM devices nor RDM functionality. This behaviour is known as „transparent“: effective, inconspicious. Since the 3404C-H only cares about the standardized structure of RDM commands, and does not care about contents, on of it’s big advantages is to function absoluteley independent of signal contents. Thus future changes or amendments to RDM commands will never affect the 3404C-H: this splitter will function always.

Adapter RJ-45./. XLR 5pol für butler S2, silver, red, XT und XT2. Belegung: e:cue

XTBA's Smart Merge A-D will merge up to 24 channels of 0 to +10v analogue control and a DMX data stream into a single DMX512 output signal.The XTBA SmartMerge A-D will allow older analogue equipment and custom-built controllers to be added into any DMX512 installation. The 24 channel analogue input may be moved via the three offset code switches to any position in the DMX output stream, allowing for analogue control of any channel.The number of analogue channels used may be decreased from 24 down to 1 via the two length code switches. Specifications Analogue MergeLength: 430.00mmDepth: 270.00mmHeight: 44.00mmWeight:4.00Kg (approx)Supply voltage120v AC (90v - 140v)240v AC (190v - 250v)Additional Information: 120V Operation is Internally Selectable

The start address board 3000P is the standard address seting board and comes with all decoders in printed circuit board style. It can also be used to program DIN rail decoders. Four DIP switches allow additional settings: DMX HOLD mode (DIP1, DIP2) and DMX personality selection (DIP3, DIP4). Two LEDs indicate operation and error conditions.Specifications DMX start address board 3000PAddress setting via BCD switches in decimal formatPower supply: automatically from hostDimensions: 70mm x 22mmSpecial feature: the 3000P allows to address the address range 513…999, which is outside the valid DMX512 start address range. On some decoders, these addresses are used to address test functions or user parameter setting).

The start address board 3000P is the standard address seting board and comes with all decoders in printed circuit board style. It can also be used to program DIN rail decoders. Four DIP switches allow additional settings: DMX HOLD mode (DIP1, DIP2) and DMX personality selection (DIP3, DIP4). Two LEDs indicate operation and error conditions.Specifications DMX start address board 3000PAddress setting via BCD switches in decimal formatPower supply: automatically from hostDimensions: 70mm x 22mmSpecial feature: the 3000P allows to address the address range 513…999, which is outside the valid DMX512 start address range. On some decoders, these addresses are used to address test functions or user parameter setting).

The start address board 3000P is the standard address seting board and comes with all decoders in printed circuit board style. It can also be used to program DIN rail decoders. Four DIP switches allow additional settings: DMX HOLD mode (DIP1, DIP2) and DMX personality selection (DIP3, DIP4). Two LEDs indicate operation and error conditions.Specifications DMX start address board 3000PAddress setting via BCD switches in decimal formatPower supply: automatically from hostDimensions: 70mm x 22mmSpecial feature: the 3000P allows to address the address range 513…999, which is outside the valid DMX512 start address range. On some decoders, these addresses are used to address test functions or user parameter setting).

The start address board 3000P is the standard address seting board and comes with all decoders in printed circuit board style. It can also be used to program DIN rail decoders. Four DIP switches allow additional settings: DMX HOLD mode (DIP1, DIP2) and DMX personality selection (DIP3, DIP4). Two LEDs indicate operation and error conditions.Specifications DMX start address board 3000PAddress setting via BCD switches in decimal formatPower supply: automatically from hostDimensions: 70mm x 22mmSpecial feature: the 3000P allows to address the address range 513…999, which is outside the valid DMX512 start address range. On some decoders, these addresses are used to address test functions or user parameter setting).

The start address board 3000P is the standard address seting board and comes with all decoders in printed circuit board style. It can also be used to program DIN rail decoders. Four DIP switches allow additional settings: DMX HOLD mode (DIP1, DIP2) and DMX personality selection (DIP3, DIP4). Two LEDs indicate operation and error conditions.Specifications DMX start address board 3000PAddress setting via BCD switches in decimal formatPower supply: automatically from hostDimensions: 70mm x 22mmSpecial feature: the 3000P allows to address the address range 513…999, which is outside the valid DMX512 start address range. On some decoders, these addresses are used to address test functions or user parameter setting).

The start address board 3000P is the standard address seting board and comes with all decoders in printed circuit board style. It can also be used to program DIN rail decoders. Four DIP switches allow additional settings: DMX HOLD mode (DIP1, DIP2) and DMX personality selection (DIP3, DIP4). Two LEDs indicate operation and error conditions.Specifications DMX start address board 3000PAddress setting via BCD switches in decimal formatPower supply: automatically from hostDimensions: 70mm x 22mmSpecial feature: the 3000P allows to address the address range 513…999, which is outside the valid DMX512 start address range. On some decoders, these addresses are used to address test functions or user parameter setting).

The 32-channel demux is equipped with high integrated D/A converters and uses high impedance slew rate limited DMX512 line drivers for improved noise immunity. This means: more devices can be attached to one DMX line, and the srl characteristics dramatically improve noise immunity on the DMX transmission line. This boosts the overall performance of your digital lighting system. Signallling is performed via indicator LEDs on the separate start address board (comprised with delivery). Red means ERRPR or No Signal, Green means OK. Start address setting is by decimal switches - no need to calculate weird binary addresses as required with commonly used DIL switches.DMX DEMULTIPLEXER32-channelDMX512/1990, DIN56930-2, DMX512-A32 outputs 0...+10V, max. 2mAresolution: 8 bit (40mV/step)power supply: 15...24V DC, approx. 35mA (idle state)Dimensions: 90mm x 70mm

Hersteller: XTBA; Kunststoffgehäuse für Hutschiene; Versorgungsspannung 230V (190V-250V); 1 DMX-Eingang auf 8 Analoge 0-10V DC Ausgänge; Einzelne Ausgänge können auch auf NON-DIM geschaltet werden. Klemmanschlüsse.

Wandlerplatine von DMX512 auf 8 Kreise 0-10V+. Jeder Kanal kann auch als Non-Dim eingestellt und betrieben werden. Verbindungen (Spannungsversorgung, DMX und Analog Ausgänge über HE14 / Molex Verbinder.Spannungsversorgung über AC 9V oder DC 15V 200ma.

Manufacturer: SOUNDLIGHTNOTE: Production stopped, only stock sale!This small 2-channel demux is some sort of genius: the two 0- 10V outputs can be independently operated and can even drive 1-10V equipment, e.g. electronic ballasts.This makes this demultiplexer a truly universal tool. The 3221C can drive dimmer packs, smoke machines, electronic ballasts, or motor v/f converters - to name just a few. Additionally, the 3221C-EP features a separate relay output (CH 3) to switch DC voltage, AC voltage or audio signals. You can assign the relay to its own DMX control channel, or to switch simultaneously with CH1. Then the relay will then automatically be fired at 1% intensity to allow synchronous operation with elecronic ballasts. Since analog controlled electronic ballasts cannot be driven to "off" via the control input, this allows to syncronously switch power to achive a true "full off" control.DMX DEMULTIPLEXER2-channelDMX512/1990, DIN56930-2, DMX512-A2 outputs 0...+10V, max. 2mA1 Relay output max. 230V, max. 10A (resistive load)Power supply: 24V DC (15...32V), approx. 60mADimensions: 72mm x 72mm

The probably first full DMX512 protocol analyzer within a simple 5pin male XLR plug. Combining high integrated logic with up to date design solutions allows use to put a bus-powered tester into a simple XLR plug. But be aware, others a only able fitting simple LED resistor combination into it. The MicroTest first tries to find out, which polarity the DMX512 signal has, then if checks the break-time to be greater or equal than 88µs. It then continued by reading the first byte and checking for the two stop bits. If the received byte was equal to zero, all tests are passed and the result is a blink with the green LED for the correct polarity or with red and green (resulting in orange light) for inverted polarity. If any of the mentioned tests fails the MicroTest will try again. But if a one second time out lints up without of success a read blink will display that something is happening on the line, but can not be interpreted as useful DMX512 signals.

DMX multiplexer converts analog control signals (0...+10V DC) into digital DMX control signals. The 3112A-H accepts 12 analog inputs. It is ideally suited to retrofit existing light control desks, operating panels and for testing purposes. You may set the DMX start address to any value (1...512). The unit may be configured to linear mode, to switsching mode or to 1-10V input sensitivity. Additionally, a second independent DMX512 out may be activated by the input signal. The 3112A-H requires a 3000P or 3003P address board for programming. This is not contained with delivery and must be orderes separately if needed. Signal inputs:             12signal voltage:            0...10V or 1...10V (selectable)input impedance:       > 10kOhmoutput:                       DMX512, 512 data slots, spring terminalssupply voltage:          230V AC 50 Hzmounting:                  DIN rail mout

Our most reliable DMX relay is the 3266R-H. The compact module features six power contacts to switch loads up to 230VAC 10Amp resistive load. Each output has a combined N.O./N.C. contact. Special feature: the output contact setting remains intact even at full power failure! Thus a sudden power loss does not affect the current output setting!The 3266R-H is best suited for installation in electrical cabinets. It mounts neatly on standard 35mm DIN rail and features patented srewless WAGO cage clamp contacts for fast, reliable and easy wiring. Spring-loaded cage clamp contacts also ensure much lower contact resistance as compared to srew terminals, and are much faster to operate. Press to open, insert wire, release. Done.The functionality can be defined by selecting the the suitable DMX Personality and is stored in nonvolatile memory. The same appllies to the DMX start adress. All settings can also be managed using DMX RDM. The switching levels can be set to one of four trigger level combinations:Hysteresis 1: 50% / 51%Hysteresis 2: 25% / 75%Hysteresis 3: 3% / 97%Hysteresis 4: 0% / 1%To ensure safe switching, the 3266R-H also features a oversampling mode. This mode analyzes multiple data packets to suppress random noise.    DMX RELAY    6 outputs    DMX512/1990, DIN56930-2, DMX512-A, ANSI E1-20 DMX RDM    6 latching contact outputs    Combined N.O./N.C. contact, max. load 230VAC 10Amps resistive load    DMX RDM V1.0 compatible, 4 DMX Personalities    Power supply: 230V AC, approx. 3.5W    Dimensions: DIN rail, approx. 6.5 units width    Start adress board not comprised with delivery. If needed, please order separately

When you have to control multiple high power loads the 3206R-EP will be your favourite choice. The compact relay module features six indenpently controllable outputs which can be loaded with 10Amps @ 230VAC (resistive load). Output contacts are N.O./N.C. (normally open / normally closed) contacts.The 3206R-EP has been designed with power distribution systems in mind.The DMX relay function ("DMX PERSONALITY") and DMX start address can be set using a separate start address board to program settings, or set using DMX RDM commands. All settings are retained in non-volatile memory.Available relay trip ponts include: Hysteresis 1: 50% / 51% Hysteresis 2: 25% / 75% Hysteresis 3: 3% / 97% Hysteresis 4: 0% / 1% The 3206R-EP also features a DMX oversampling mode to guarantee reliable switching at all times. The oversampling mode will analyze multiple DMX data packets before any action is taken and will prevent the DMX relay from switching as long as input signals are not stable. You may override oversampling mode for fast switching purposes.DMX RELAY PCB6-channelDMX512/1990, DIN 56930-2, DMX512-A6 switching outputsRelays with N.O./N.C. (normally open/normally closed) contacts 230V 10A res. load4 DMX PersonalitiesPower supply: 230V AC, approx. 4,5WDimensions: pcb, approx. 110mm x 86mm
